from pathlib import Path
import os
import functools
import itertools
import time
from IPython.display import HTML, Image
import matplotlib.pyplot as plt
from numpy import *
from celluloid import Camera
import matplotlib.patches as patches
from scipy.integrate import odeint, solve_ivp
from simple_pid import PID
ROOT = Path("./assets/img/")
if not os.path.exists(ROOT):
os.makedirs(ROOT)
N-Body problem.
\[\frac{d^2 r}{dt^2} = -G \sum_{i=1}^N \frac{m_i}{|r_i|^3} r_i\]G = 1e-3
BODY_NUM = 10
MASS = [1e4] + [1]*(BODY_NUM-1)
def get_color(idx, count):
return plt.get_cmap("hsv", count)(idx)
def get_bodies():
rng = random.default_rng(seed=0)
R = 1
V = 1
state_arr = [[0., 0., 0., 0., 0., 0.]]
theta_arr = linspace(0, 2*pi, BODY_NUM)[:-1]
for theta in theta_arr:
x = R*cos(theta)
y = R*sin(theta)
z = 0
vx = -V*sin(theta)
vy = V*cos(theta)
vz = 0
state_arr.append([x, y, z, vx, vy, vz])
state_arr = array(state_arr)
state_arr[1:] = state_arr[1:] + rng.uniform(-0.1, 0.1, size=state_arr[1:].shape)
return state_arr
def motion_step(s0, t):
s0 = s0.reshape(-1, 6)
r0, v0 = s0[:, :3], s0[:, 3:]
N = r0.shape[0]
mask = ones(shape=(N, N))
mask = mask - eye(N)
mask = mask[..., None]
mass = array(MASS)
mass = mass[None, :, None]
r = r0[:, None, :] - r0[None, :, :]
eps = 1e-7
dist_sq = (r**2).sum(axis=-1) + eps**2 # (N, N)
inv_r3 = 1.0 / (dist_sq * sqrt(dist_sq))
r *= inv_r3[..., None]
dv = -G*(mask*mass*r).sum(axis=1)
dr = v0
s = concat([dr, dv], axis=1)
s = s.reshape(-1)
return s
def sim_n_body(tail=False):
rng = random.default_rng(seed=0)
T = 5
t = linspace(0, T, 250)
s0 = get_bodies()
sol = solve_ivp(lambda t, s: motion_step(s, t), (0, T), s0.reshape(-1), t_eval=t)
sol = sol.y.transpose(1, 0)
fig = plt.figure()
ax = fig.add_subplot(projection='3d')
for fn in [ax.set_xticklabels, ax.set_yticklabels, ax.set_zticklabels]:
fn([])
colors = [get_color(idx, BODY_NUM) for idx in range(BODY_NUM)]
markers = [250] + [25]*(BODY_NUM-1)
camera = Camera(fig)
for idx, step in enumerate(sol):
step = step.reshape(-1, 6)
r = step[:,:3]
ax.scatter(r[:,0], r[:,1], r[:,2], color=colors, s=markers)
if tail:
line = sol[:idx+1]
line = line.reshape(line.shape[0], -1, 6)
line = line.transpose(1, 0, 2)
for body_idx, body in enumerate(line):
ax.plot(body[:,0], body[:,1], body[:,2], color=colors[body_idx])
camera.snap()
anim = camera.animate()
plt.close()
gif_path = ROOT / "nbody.gif"
anim.save(gif_path, writer="pillow", fps=10)
return Image(url=gif_path)

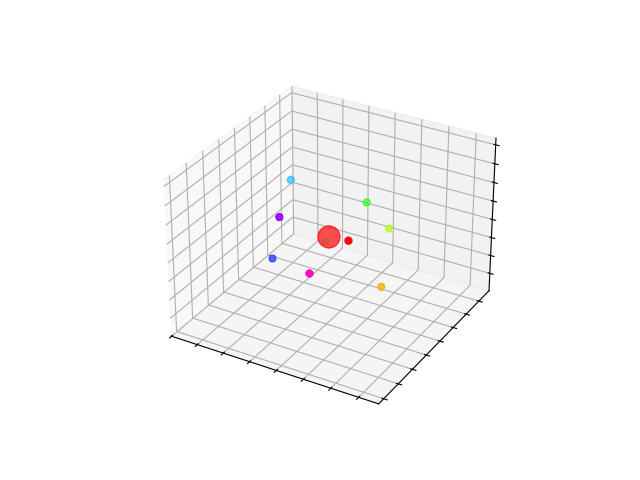

sim_n_body(tail=True)

Barnes-Hut
class Body:
def __init__(self, id, r, v, m):
self.id = id
self.r = r
self.v = v
self.m = m
class Node:
def __init__(self, center, half_size):
self.center = array(center) # 3D center of cube
self.half_size = half_size # half side length
self.com = zeros(3)
self.mass = 0.0
self.children = None # 8 octants
self.body = None
self.is_leaf = True
def within(self, body):
v1 = self.center - self.half_size
v2 = self.center + self.half_size
return (body.r > v1).all() and (body.r < v2).all()
def get_octants(center, half_size):
child_half_size = half_size/2.
inc = [-child_half_size, child_half_size]
nodes = []
for dx, dy, dz in itertools.product(inc, inc, inc):
node = Node(center+array([dx, dy, dz]), half_size=child_half_size)
nodes.append(node)
return nodes
def insert_tree(tree: Node, body: ndarray):
if not tree.within(body):
return
if tree.is_leaf and tree.body is None:
tree.body = body
elif tree.is_leaf and tree.body is not None:
tree.is_leaf = False
tree.children = get_octants(tree.center, tree.half_size)
for child in tree.children:
insert_tree(child, tree.body)
insert_tree(child, body)
tree.body = None
elif not tree.is_leaf:
for child in tree.children:
insert_tree(child, body)
def init_tree(bodies):
bodies = [b.r for b in bodies]
bodies = array(bodies)
center = bodies.mean(axis=0)
half_size = (bodies.max() - bodies.min())/2.
return Node(center, half_size)
def build_tree(bodies):
tree = init_tree(bodies)
for body in bodies:
insert_tree(tree, body)
return tree
def update_com(tree):
eps = 1e-7
if tree.is_leaf:
if tree.body is not None:
tree.com = tree.body.r
tree.mass = tree.body.m
return
for c in tree.children:
update_com(c)
tree.com += c.mass*c.com
tree.mass += c.mass
tree.com /= (tree.mass+eps)
G = 1e-3
BH_BODY_NUM = 30
BH_MASS = [1e4] + [1]*(BH_BODY_NUM-1)
def get_bodies_barnes_hut():
rng = random.default_rng(seed=0)
R = 1
V = 1
state_arr = [[0., 0., 0., 0., 0., 0.]]
theta_arr = linspace(0, 2*pi, BH_BODY_NUM)[:-1]
for theta in theta_arr:
x = R*cos(theta)
y = R*sin(theta)
z = 0
vx = -V*sin(theta)
vy = V*cos(theta)
vz = 0
state_arr.append([x, y, z, vx, vy, vz])
state_arr = array(state_arr)
state_arr[1:] = state_arr[1:] + rng.uniform(-0.1, 0.1, size=state_arr[1:].shape)
bodies = []
for body_idx, body_state in enumerate(state_arr):
body = Body(id=body_idx, r=body_state[:3], v=body_state[3:], m=BH_MASS[body_idx])
bodies.append(body)
return bodies
def state_from_bodies(bodies):
r = []
v = []
for body in bodies:
r.append(body.r)
v.append(body.v)
r, v = array(r), array(v)
return concat([r, v], axis=1).flatten()
def update_bodies(bodies, s0):
s0 = s0.reshape(-1, 6)
for body_idx, body_s in enumerate(s0):
body = bodies[body_idx]
body.r = body_s[:3]
body.v = body_s[3:]
def get_acc(tree, body, theta):
eps = 1e-7
def get_acc_from_2_bodies(com, mass, body):
ri = body.r - com
dist_sq = (ri**2).sum() + eps**2 # (N, N)
inv_r3 = 1.0 / (dist_sq * sqrt(dist_sq))
return mass * inv_r3 * ri
if tree.is_leaf:
if tree.body is None or body.id == tree.body.id:
return 0
ri = body.r - tree.body.r
dist_sq = (ri**2).sum() + eps**2 # (N, N)
inv_r3 = 1.0 / (dist_sq * sqrt(dist_sq))
return get_acc_from_2_bodies(com=tree.body.r, mass=tree.body.m, body=body)
s = 2*tree.half_size
ri = body.r - tree.com
d = (ri**2).sum()
angular_size = s/d
if angular_size < theta:
return get_acc_from_2_bodies(com=tree.com, mass=tree.mass, body=body)
a = 0.
for child in tree.children:
a += get_acc(child, body, theta)
return a
def motion_step_bh(s0, t, bodies, theta=0.3):
update_bodies(bodies, s0)
tree = build_tree(bodies)
update_com(tree)
s0 = s0.reshape(-1, 6)
r0, v0 = s0[:, :3], s0[:, 3:]
dr = v0
dv = []
for body in bodies:
dv.append(-G*get_acc(tree, body, theta))
return concat([dr, dv], axis=1).reshape(-1)
def sim_n_body_bh(tail=False, verbose=False):
theta = 1.
T = 5
t = linspace(0, T, 250)
bodies = get_bodies_barnes_hut()
s0 = state_from_bodies(bodies)
start = time.time()
sol = solve_ivp(lambda t, s: motion_step_bh(s, t, bodies, theta=theta), (0, T), s0.reshape(-1), t_eval=t)
if verbose:
print(f"ode solved: {time.time() - start}s")
sol = sol.y.transpose(1, 0)
fig = plt.figure()
ax = fig.add_subplot(projection='3d')
for fn in [ax.set_xticklabels, ax.set_yticklabels, ax.set_zticklabels]:
fn([])
s0 = s0.reshape(-1, 6)
for fn, dim in zip([ax.set_xlim, ax.set_ylim, ax.set_zlim], [0, 1, 2]):
min = s0[:, dim].min()
max = s0[:, dim].max()
fn((min, max))
colors = [get_color(idx, BH_BODY_NUM) for idx in range(BH_BODY_NUM)]
markers = [250] + [25]*(BH_BODY_NUM-1)
camera = Camera(fig)
for idx, step in enumerate(sol):
step = step.reshape(-1, 6)
r = step[:,:3]
ax.scatter(r[:,0], r[:,1], r[:,2], color=colors, s=markers)
if tail:
line = sol[:idx+1]
line = line.reshape(line.shape[0], -1, 6)
line = line.transpose(1, 0, 2)
for body_idx, body in enumerate(line):
ax.plot(body[:,0], body[:,1], body[:,2], color=colors[body_idx])
camera.snap()
anim = camera.animate()
plt.close()
gif_path = ROOT / "nbody_bh.gif"
anim.save(gif_path, writer="pillow", fps=10)
return Image(url=gif_path)

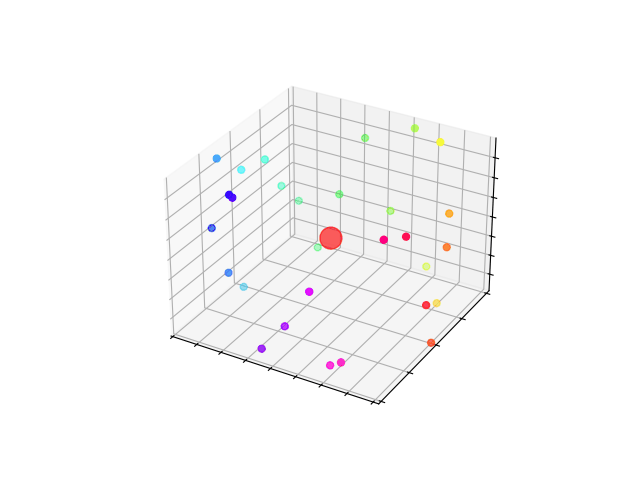

sim_n_body_bh(tail=True, verbose=True)
ode solved: 19.222471714019775s
